SAPL-WPAS
Smart Any Water Pump Controller(SAPL-WPAS): It's a 100 % Retrofit and fully automatic light AI (artificial intelligence) based controller that enables the stop and start of any water pump in the market without running any wires to the tank and could be installed within 30m. It has got a lot of other features like Dry-run/Temp/Vibration protection. This is the only controller in the market that supports multiple tanks being filled by a single motor.
- 100 % Retrofit and fully automatic light AI(artificial intelligence) based operation enabling the stop and start of any water pump in the market.
- This is the only controller in the market that supports multiple tanks being filled by a single motor. This feature makes it the best water pump controller for filling up the over head tanks of apartments and duplexes or the sumps of an entire community where a single water pump is used.
- Supports both submersible water pumps as well as surface water pumps.
- Supports both single phase as well as 3-phase pumps.
- Manual start & stop is still supported from the starter as well as the SmartAnyOne™ mobile APP.
- Saves electricity and water.
- Provides granular data analytics of the pump start and stop times along with water and electricity consumption via a weekly automated email.
- Supports both overhead tanks as well as underground sumps.
- Runtime parameters are easily configurable via a password protected local web page that is hosted within the controller.
- Absolutely zero wiring to the tank and no sensors in the tank. This saves you from regular cleaning of the tank sensors (wired/wireless) due to algae growth and/or contamination in the water itself.
- Dry run protection.
- Overheat protection of surface pumps.
- Over-vibration protection of surface pumps
- Timer based On/Off.
- Turn On/Off from the SmartAny Mobile App (IOS |ANDROID) from anywhere in the world.
- Turn On/Off via voice using Amazon Alexa.
- Mobile notification of On/Off and shutdown for motor protection (Dry-run/Temperature/Vibration).
Supply Voltage : 110-240V AC
Load : 1/2HP to 20 HP Water Pump
WiFi : IEEE 802.11b/g/n 2.4GHz
Input Voltage: 110V to 240V AC
Vibration Range: 0 to 100 M/S2
Temperature Range: -40 to 100 °C

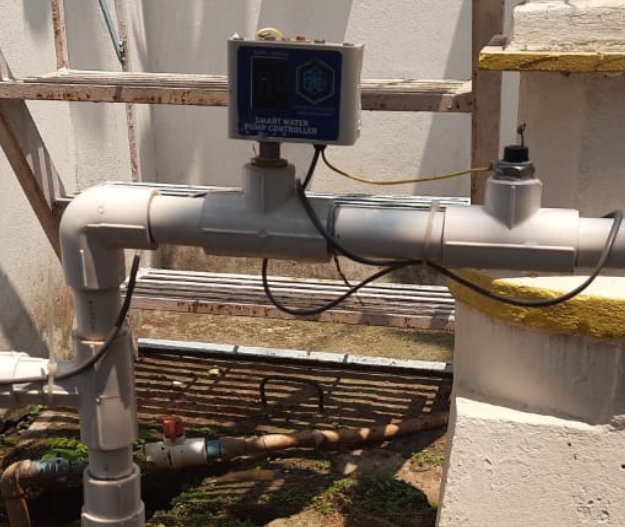

SAPL-WPAS at a client site: | Pressure and Dry-run Sensor at a client site: | |

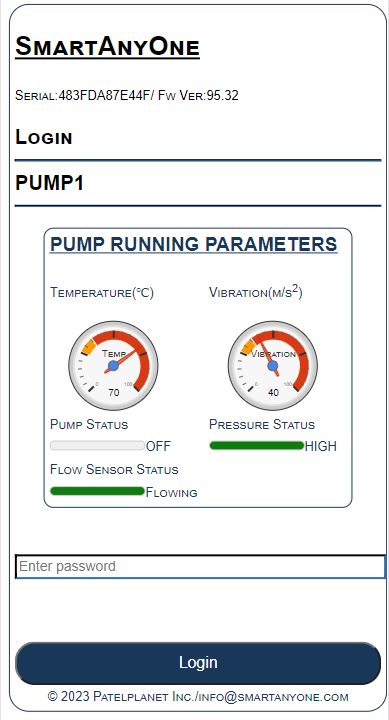

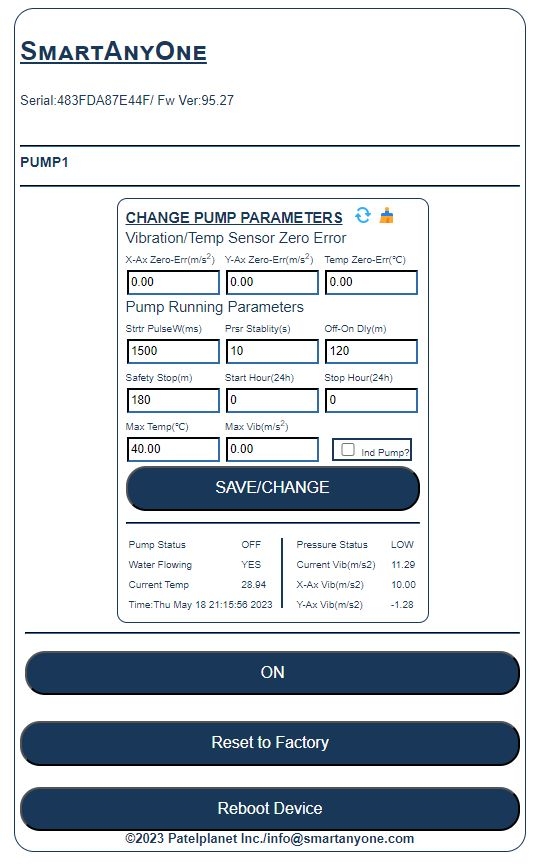

SAPL-WPAS run time parameters on a mobile screen: | SAPL-WPAS run time parameters setting screen: | |

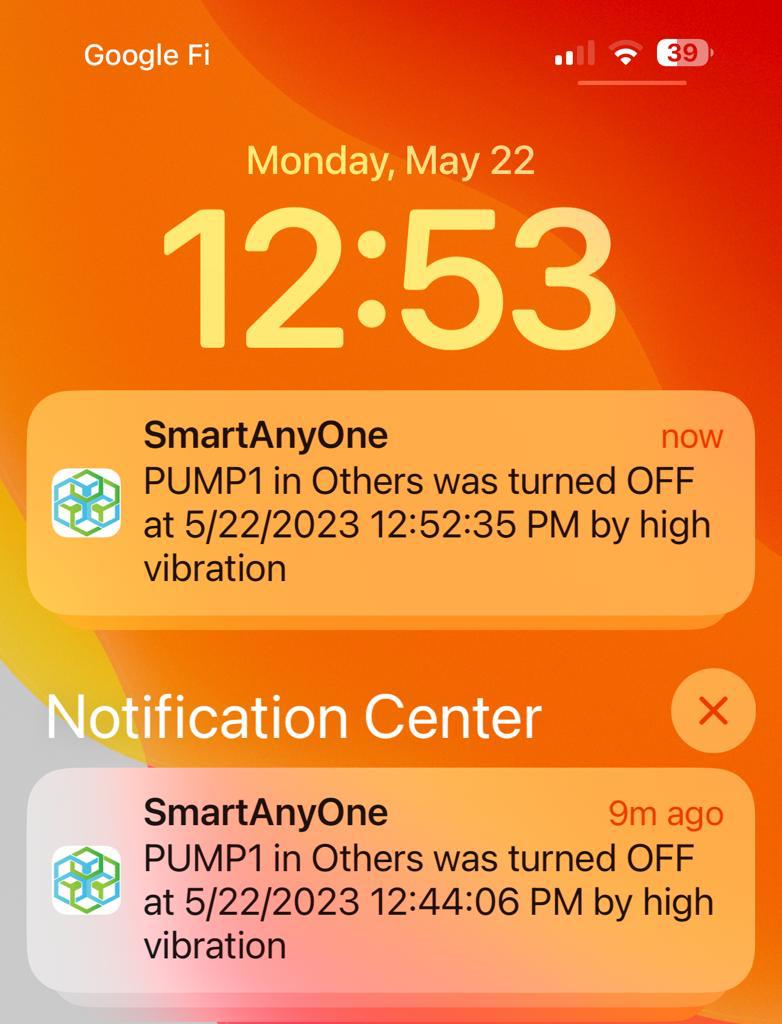

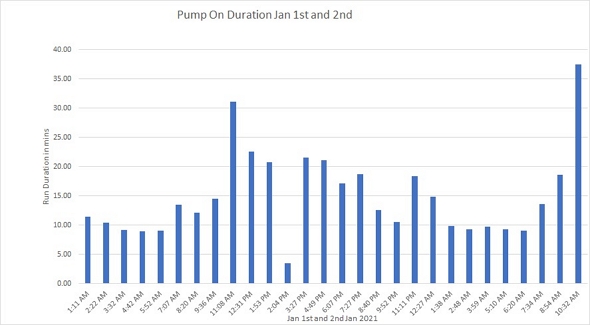

SAPL-WPAS run time Analytics: | SAPL-WPAS mobile notification: | |

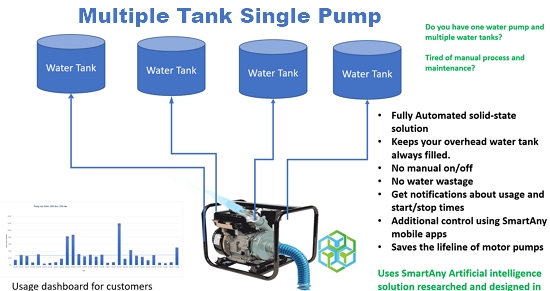

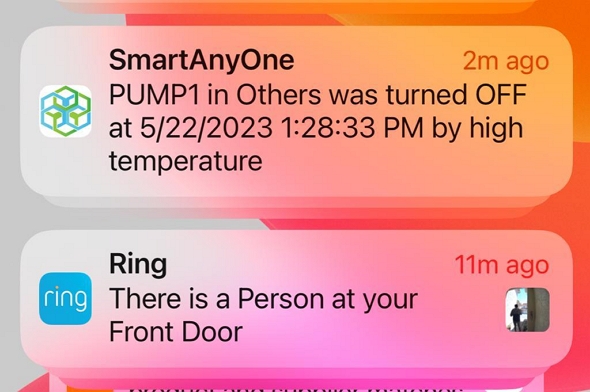

SAPL-WPAS mobile notification: | Multi-Tank with single pump: |
